Pays for itself, then improves your bottom line ////

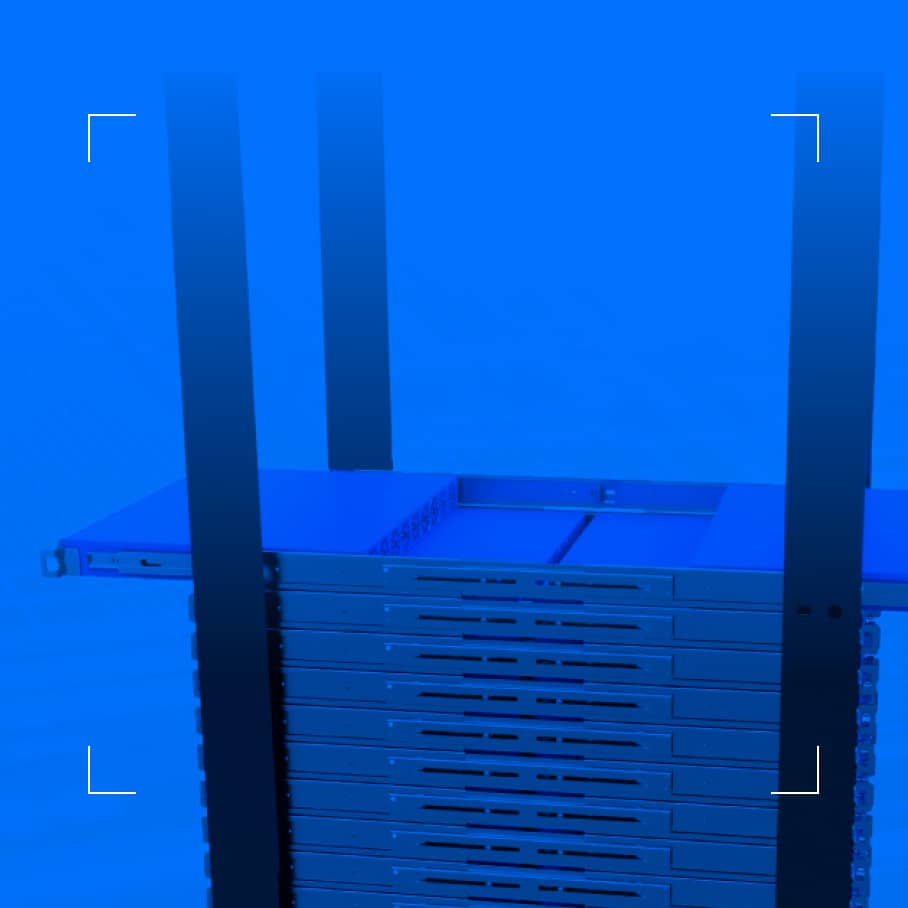

Unlock profit potential with our back-to-back chassis.
Double the density of a standard 1U server.
Supports most mATX and ATX form factor motherboards.
Air shrouds for efficient cooling.
Tech Specs
Product SKU
01
SKU ///
Boot Hardware CHA-1U-B2B-R1
Form Factor
02
Mini 1U ///
Two Mini 1U chassis utilizing a single 1U space.
Motherboard Support
03
Motherboard ///
Maximum motherboard size 12" x 9.6" ATX.
Dimensions
04
Height ///
1.7" (43 mm)
Width ///
16.9" (429 mm)
Depth ///
14.8" (375mm) - Each Chassis
Weight ///
20 lbs (9 kg) - Gross (2 chassis)
Packaging ///
18.5" (470 mm) x 15.5" (394 mm) x 4.8" (122 mm) - Includes 2 Chassis
Color ///
Blue
Expansion Slots
05
Expansion ///
1x Full-height, Half-length expansion slot. Requires a riser card.
Drive Bays
06
Storage Support ///
1 x 3.5" + 2 x 2.5" or 4 x 2.5" (in place of 1 x 3.5")
2.5" Brackets ///
Includes 2 x 2.5" brackets for up to 4 x 2.5" support
Front Panel
07
Button ///
Power On/Off Button
LED ///
Integrated power status LED
Cooling
08
Fans ///
Includes 3 x 40mm high performance fans.
Operating Environment
09
Temperature Range ///
Operating: 5°C - 35°C (41°F - 95°F)
Non-Operating: -40°C - 70°C (-40°F - 158°F) Humidity /// Operating: 8% - 90% (non-condensing) Non-Operating: 5% - 95% (non-condensing)
Non-Operating: -40°C - 70°C (-40°F - 158°F) Humidity /// Operating: 8% - 90% (non-condensing) Non-Operating: 5% - 95% (non-condensing)
Power Supply
10
Input Power ///
100 - 240Vac @ 50-60Hz
Output Power ///
500W @ 90% Efficiency
